Snort
Snort Fundamentals
- Snort is an open-source intrusion detection system (IDS) and intrusion prevention system (IPS) that can also function as a packet logger/sniffer, similar to Suricata.
- It inspects network traffic to identify and log all activity, providing a comprehensive view and detailed logs of application layer transactions.
- Snort requires rule sets to define inspection parameters and identify specific items of interest.
- It is designed to operate efficiently on both general-purpose and custom hardware.
Snort Operation Modes
- Snort typically operates in the following modes:
- Inline IDS/IPS.
- Passive IDS.
- Network-based IDS.
- Host-based IDS (however, Snort is not ideally a host-based IDS. We would recommend opting for more specialized tools for this.)
According to Snort’s documentation:
“With certain DAQ modules, Snort is able to utilize two different modes of operation: passive and inline. Passive mode gives Snort the ability to observe and detect traffic on a network interface, but it prevents outright blocking of traffic. Inline mode on the other hand, does give Snort the ability to block traffic if a particular packet warrants such an event.
Snort will infer the particular mode of operation based on the options used at the command line. For example, reading from a pcap file with the -r option or listening on an interface with -i will cause Snort to run in passive mode by default. If the DAQ supports inline, however, then users can specify the -Q flag to run Snort inline.
One DAQ module that supports inline mode is afpacket, which is a module that gives Snort access to packets received on Linux network devices.”
Snort Architecture
- In order for Snort to transition from a simple packet sniffer to a robust IDS, several key components were added:
Preprocessor.Detection Engine.Logging and Alerting System.- Various
Output modules.
- The packet sniffer extracts network traffic, decodes packet structures, and forwards raw packets to the
Preprocessors. Snort Preprocessorsanalyze packets to identify their type or behavior, utilizing plugins like the HTTP preprocessor or theport_scanpreprocessor. These plugins, configured insnort.lua, pass their findings to theDetection Engine.- The
Detection Enginecompares packets against a predefined rule set. Matches trigger information to be sent to the Logging and Alerting System. - The
Logging and Alerting SystemandOutput modulesrecord events or trigger alerts based on rule actions. Logs are typically stored insyslog,unified2formats, or directly in a database. Output modules are configured insnort.lua.

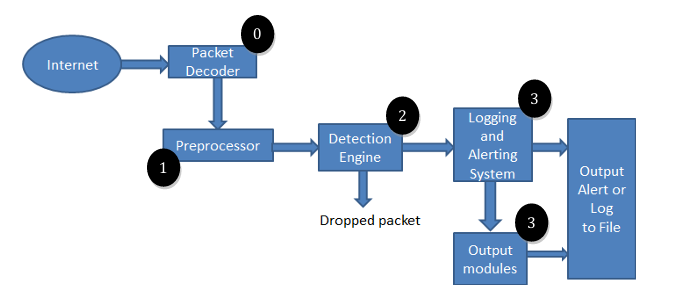

- Snort high-level architecture
Snort Configuration & Validating Snort’s Configuration
-
Snort 3 offers pre-configured
snort.luaandsnort_defaults.luafiles for quick and easy setup, providing a standard configuration framework for users. -
The
snort.luafile serves as the principal configuration file for Snort. -
This file contains the following sections:
- Network variables
- Decoder configuration
- Base detection engine configuration
- Dynamic library configuration
- Preprocessor configuration
- Output plugin configuration
- Rule set customization
- Preprocessor and decoder rule set customization
- Shared object rule set customization
-
Let’s browse the
snort.luafile residing in this section’s target as follows.
sudo more /root/snorty/etc/snort/snort.lua
---------------------------------------------------------------------------
-- Snort++ configuration
---------------------------------------------------------------------------
-- there are over 200 modules available to tune your policy.
-- many can be used with defaults w/o any explicit configuration.
-- use this conf as a template for your specific configuration.
-- 1. configure defaults
-- 2. configure inspection
-- 3. configure bindings
-- 4. configure performance
-- 5. configure detection
-- 6. configure filters
-- 7. configure outputs
-- 8. configure tweaks
---------------------------------------------------------------------------
-- 1. configure defaults
---------------------------------------------------------------------------
-- HOME_NET and EXTERNAL_NET must be set now
-- setup the network addresses you are protecting
HOME_NET = 'any'
-- set up the external network addresses.
-- (leave as "any" in most situations)
EXTERNAL_NET = 'any'
include 'snort_defaults.lua'
---------------------------------------------------------------------------
-- 2. configure inspection
---------------------------------------------------------------------------
-- mod = { } uses internal defaults
-- you can see them with snort --help-module mod
-- mod = default_mod uses external defaults
-- you can see them in snort_defaults.lua
-- the following are quite capable with defaults:
stream = { }
stream_ip = { }
stream_icmp = { }
stream_tcp = { }
stream_udp = { }
stream_user = { }
stream_file = { }
---SNIP---
- Enabling and fine-tuning Snort
modulesis a significant aspect of the configuration process. - To explore the complete list and get a brief description of all Snort 3 modules, you can use the following command.
snort --help-modules
ack (ips_option): rule option to match on TCP ack numbers
active (basic): configure responses
address_space_selector (policy_selector): configure traffic processing based on address space
alert_csv (logger): output event in csv format
alert_fast (logger): output event with brief text format
alert_full (logger): output event with full packet dump
alert_json (logger): output event in json format
alert_syslog (logger): output event to syslog
alert_talos (logger): output event in Talos alert format
---SNIP---
- These modules are enabled and configured in the
snort.luaconfiguration file using Lua table formats/literals. - If a module is set up as an empty table, it means it’s using its built-in “default” settings.
- You can use the following command to see these default settings.
snort --help-config arp_spoof
ip4 arp_spoof.hosts[].ip: host ip address
mac arp_spoof.hosts[].mac: host mac address
- Passing (and validating) configuration files to Snort can be done as follows.
snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
output
ips
classifications
references
binder
file_id
ftp_server
smtp
port_scan
gtp_inspect
dce_smb
s7commplus
modbus
ssh
active
alerts
daq
decode
host_cache
host_tracker
hosts
network
packets
process
search_engine
so_proxy
stream_icmp
normalizer
stream
stream_ip
stream_tcp
stream_udp
stream_user
stream_file
arp_spoof
back_orifice
dns
imap
netflow
pop
rpc_decode
sip
ssl
telnet
cip
dnp3
iec104
mms
dce_tcp
dce_udp
dce_http_proxy
dce_http_server
ftp_client
ftp_data
http_inspect
http2_inspect
file_policy
js_norm
appid
wizard
trace
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3084
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to passive.
Snort successfully validated the configuration (with 0 warnings).
o")~ Snort exiting
- Snort 3 needs to know the location of
LibDAQ. LibDAQ, or the “Data Acquisition Library,” is a layer that simplifies how modules connect to/communicate with network data sources (both hardware and software).
Snort Inputs
- To observe Snort in action, the easiest method is to execute it against a packet capture file.
- By providing the name of the pcap file as an argument to the
-roption in the command line, Snort will process the file accordingly.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -r <path-to-pcap-file>icmp.pcap
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
---SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/icmp.pcap
-- [0] /home/htb-student/pcaps/icmp.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 8
analyzed: 8
allow: 8
rx_bytes: 592
--------------------------------------------------
codec
total: 8 (100.000%)
eth: 8 (100.000%)
icmp4: 8 (100.000%)
ipv4: 8 (100.000%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 8
processed_packets: 8
total_sessions: 1
--------------------------------------------------
binder
new_flows: 1
inspects: 1
--------------------------------------------------
detection
analyzed: 8
--------------------------------------------------
port_scan
packets: 8
trackers: 2
--------------------------------------------------
stream
flows: 1
--------------------------------------------------
stream_icmp
sessions: 1
max: 1
created: 1
released: 1
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.033229
pkts/sec: 241
o")~ Snort exiting
- Snort also has the capability to listen on active network interfaces.
- To specify this behavior, you can utilize the
-ioption followed by the names of the interfaces on which Snort should run.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -i ens160
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
---SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 2820
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to passive.
Commencing packet processing
++ [0] ens160
^C** caught int signal
== stopping
-- [0] ens160
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
received: 33
analyzed: 33
allow: 33
idle: 9
rx_bytes: 2756
--------------------------------------------------
codec
total: 33 (100.000%)
discards: 2 ( 6.061%)
arp: 13 ( 39.394%)
eth: 33 (100.000%)
icmp4: 12 ( 36.364%)
icmp6: 3 ( 9.091%)
ipv4: 17 ( 51.515%)
ipv6: 3 ( 9.091%)
tcp: 5 ( 15.152%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 18
processed_packets: 16
ignored_packets: 2
total_sessions: 3
--------------------------------------------------
arp_spoof
packets: 13
--------------------------------------------------
binder
raw_packets: 15
new_flows: 3
inspects: 18
--------------------------------------------------
detection
analyzed: 33
--------------------------------------------------
port_scan
packets: 20
trackers: 8
--------------------------------------------------
stream
flows: 3
--------------------------------------------------
stream_icmp
sessions: 2
max: 2
created: 2
released: 2
--------------------------------------------------
stream_tcp
sessions: 1
max: 1
created: 1
released: 1
instantiated: 1
setups: 1
data_trackers: 1
segs_queued: 1
segs_released: 1
max_segs: 1
max_bytes: 64
--------------------------------------------------
tcp
bad_tcp4_checksum: 2
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 1 0 0 0 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
process
signals: 1
--------------------------------------------------
timing
runtime: 00:00:25
seconds: 25.182182
pkts/sec: 1
o")~ Snort exiting
Snort Rules
-
Snort rules, similar to Suricata rules, consist of a
Rule HeaderandRule Options. -
Despite their similarities, we recommend consulting https://docs.snort.org/ and https://docs.suricata.io/en/latest/rules/differences-from-snort.html for Snort rule writing guidance.
-
The latest Snort rules are available on the Snort or Emerging Threats websites.
-
In Snort deployments, rules can be directly integrated into the
snort.luaconfiguration file using theipsmodule.
sudo vim /root/snorty/etc/snort/snort.lua
---SNIP---
ips =
{
-- use this to enable decoder and inspector alerts
--enable_builtin_rules = true,
-- use include for rules files; be sure to set your path
-- note that rules files can include other rules files
-- (see also related path vars at the top of snort_defaults.lua)
{ variables = default_variables, include = '/home/htb-student/local.rules' }
}
---SNIP---
- Snort automatically loads “included” rules.
- Alternatively, rules can be incorporated directly from the command line using:
- The
-Roption to specify a single specific rules file to be utilized by snort. - the
--rule-pathoption to specify a path to the directory containing rules files. This enables us to provide Snort with a directory containing multiple rules files.
- The
Snort Outputs
In our Snort deployment, we may encounter a significant amount of data. To provide a summary of the core output types, let’s explore the key aspects:
-
Basic Statistics—Upon shutdown, Snort generates various counts based on the configuration and processed traffic. This includes:Packet Statistics—It includes information from the DAQ and decoders, such as the number of received packets and UDP packets.Module Statistics—Each module keeps track of activity through peg counts, indicating the frequency of observed or performed actions. Examples include the count of processed HTTP GET requests and trimmed TCP reset packets.File Statistics—This section provides a breakdown of file types, bytes, and signatures.Summary Statistics—It encompasses the total runtime for packet processing, packets per second, and, if configured, profiling data.
-
Alerts—When rules are configured, it is necessary to enable alerting (using the-Aoption) to view the details of detection events. There are multiple types of alert outputs available, including:-A cmg—This option combines-A fast -d -eand displays alert information along with packet headers and payload.-A u2—This option is equivalent to-A unified2and logs events and triggering packets in a binary file, which can be used for post-processing with other tools.-A csv—This option outputs fields in comma-separated value format, providing customization options and facilitating pcap analysis.- Main Objective—the
-Aoption is used to enable and control how detection alerts are displayed or logged, allowing you to view and analyze security events in different output formats.
-
To discover the available alert types, we can execute the following command.
snort --list-plugins | grep logger
logger::alert_csv v0 static
logger::alert_fast v0 static
logger::alert_full v0 static
logger::alert_json v0 static
logger::alert_syslog v0 static
logger::alert_talos v0 static
logger::alert_unixsock v0 static
logger::log_codecs v0 static
logger::log_hext v0 static
logger::log_pcap v0 static
logger::unified2 v0 static
-
Performance Statistics—In addition to the outputs above, theperf_monitormodule can be configured to capture a customizable set ofpegcounts during runtime. This data can be used by an external program to monitor Snort’s activity without interrupting its operations. Furthermore, theprofilermodule tracks time and space usage by modules and rules, which helps optimize system performance. The profiler output is displayed underSummary Statisticsduring shutdown. -
Let’s see an example of the
cmgoutput.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -r <path-to-pcap-file>/icmp.pcap -A cmg
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
--SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 209 0 209 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 209
text rules: 209
option chains: 209
chain headers: 2
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 0 0 1 0
total 0 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/icmp.pcap
06/19-08:45:56.838904 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 192.168.158.139 -> 174.137.42.77
00:0C:29:34:0B:DE -> 00:50:56:E0:14:49 type:0x800 len:0x4A
192.168.158.139 -> 174.137.42.77 ICMP TTL:128 TOS:0x0 ID:55107 IpLen:20 DgmLen:60
Type:8 Code:0 ID:512 Seq:8448 ECHO
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
06/19-08:45:57.055699 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 174.137.42.77 -> 192.168.158.139
00:50:56:E0:14:49 -> 00:0C:29:34:0B:DE type:0x800 len:0x4A
174.137.42.77 -> 192.168.158.139 ICMP TTL:128 TOS:0x0 ID:30433 IpLen:20 DgmLen:60
Type:0 Code:0 ID:512 Seq:8448 ECHO REPLY
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
06/19-08:45:57.840049 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 192.168.158.139 -> 174.137.42.77
00:0C:29:34:0B:DE -> 00:50:56:E0:14:49 type:0x800 len:0x4A
192.168.158.139 -> 174.137.42.77 ICMP TTL:128 TOS:0x0 ID:55110 IpLen:20 DgmLen:60
Type:8 Code:0 ID:512 Seq:8704 ECHO
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
---SNIP---
06/19-08:46:00.042354 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 174.137.42.77 -> 192.168.158.139
00:50:56:E0:14:49 -> 00:0C:29:34:0B:DE type:0x800 len:0x4A
174.137.42.77 -> 192.168.158.139 ICMP TTL:128 TOS:0x0 ID:30453 IpLen:20 DgmLen:60
Type:0 Code:0 ID:512 Seq:9216 ECHO REPLY
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-- [0] /home/htb-student/pcaps/icmp.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 8
analyzed: 8
allow: 8
rx_bytes: 592
--------------------------------------------------
codec
total: 8 (100.000%)
eth: 8 (100.000%)
icmp4: 8 (100.000%)
ipv4: 8 (100.000%)
--------------------------------------------------
---SNIP---
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.042473
pkts/sec: 188
o")~ Snort exiting
- The same command but using a
.rulesfiles that may not be “included” insnort.luais the following.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -r /home/htb-student/pcaps/icmp.pcap -R <path-to-pcap-file>local.rules -A cmg
--------------------------------------------------
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
--SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 209 0 209 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 209
text rules: 209
option chains: 209
chain headers: 2
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 0 0 1 0
total 0 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/icmp.pcap
06/19-08:45:56.838904 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 192.168.158.139 -> 174.137.42.77
00:0C:29:34:0B:DE -> 00:50:56:E0:14:49 type:0x800 len:0x4A
192.168.158.139 -> 174.137.42.77 ICMP TTL:128 TOS:0x0 ID:55107 IpLen:20 DgmLen:60
Type:8 Code:0 ID:512 Seq:8448 ECHO
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
---SNIP---
06/19-08:46:00.042354 [**] [1:1000001:1] "ICMP test" [**] [Classification: Generic ICMP event] [Priority: 3] {ICMP} 174.137.42.77 -> 192.168.158.139
00:50:56:E0:14:49 -> 00:0C:29:34:0B:DE type:0x800 len:0x4A
174.137.42.77 -> 192.168.158.139 ICMP TTL:128 TOS:0x0 ID:30453 IpLen:20 DgmLen:60
Type:0 Code:0 ID:512 Seq:9216 ECHO REPLY
snort.raw[32]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 abcdefgh ijklmnop
71 72 73 74 75 76 77 61 62 63 64 65 66 67 68 69 qrstuvwa bcdefghi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-- [0] /home/htb-student/pcaps/icmp.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 8
analyzed: 8
allow: 8
rx_bytes: 592
--------------------------------------------------
codec
total: 8 (100.000%)
eth: 8 (100.000%)
icmp4: 8 (100.000%)
ipv4: 8 (100.000%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 8
processed_packets: 8
total_sessions: 1
--------------------------------------------------
binder
new_flows: 1
inspects: 1
--------------------------------------------------
detection
analyzed: 8
hard_evals: 8
alerts: 8
total_alerts: 8
logged: 8
--------------------------------------------------
port_scan
packets: 8
trackers: 2
--------------------------------------------------
search_engine
qualified_events: 8
--------------------------------------------------
stream
flows: 1
--------------------------------------------------
stream_icmp
sessions: 1
max: 1
created: 1
released: 1
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.042473
pkts/sec: 188
o")~ Snort exiting
Snort Key Features
- Key features that bolster Snort’s effectiveness include:
- Deep packet inspection, packet capture, and logging
- Intrusion detection
- Network Security Monitoring
- Anomaly detection
- Support for multiple tenants
- Both IPv6 and IPv4 are supported
Snort Rule Development
-
Snort rules are powerful tools for identifying/flagging potential malicious network activity.
-
While similar to Suricata rules in their structure (header and options), we recommend studying Snort rule writing using the following resources: https://docs.snort.org/, https://docs.suricata.io/en/latest/rules/differences-from-snort.html.
-
Let’s move forward and explore some examples of crafting Snort rules to counter real-world malware threats.
Snort Rule Development Example 1: Detecting Ursnif (Inefficiently)
alert tcp any any -> any any (msg:"Possible Ursnif C2 Activity"; flow:established,to_server; content:"/images/", depth 12; content:"_2F"; content:"_2B"; content:"User-Agent|3a 20|Mozilla/4.0 (compatible|3b| MSIE 8.0|3b| Windows NT"; content:!"Accept"; content:!"Cookie|3a|"; content:!"Referer|3a|"; sid:1000002; rev:1;)
-
This Snort rule detects a variation of Ursnif malware but is inefficient due to missed HTTP sticky buffers.
-
It operates on established, client-to-server TCP connections (
flow:established,to_server;). -
The rule searches for:
- “
/images/” within the first 12 bytes of the payload (content:"/images/", depth 12;). - “
_2F” and “_2B” anywhere in the payload (content:"_2F";andcontent:"_2B";).
- “
-
It also identifies a specific
User-Agentstring, using hexadecimal representations for “:” and “;” (content:"User-Agent|3a 20|Mozilla/4.0 (compatible|3b| MSIE 8.0|3b| Windows NT";). -
Finally, it checks for the absence of “
Accept”, “Cookie:”, and “Referer:” HTTP headers (content:!"Accept"; content:!"Cookie|3a|"; content:!"Referer|3a|";). -
Run Snort against the
ursnif.pcapfile.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R <path-to-rule-file>/local.rules -r <path-to-pcap-file>/ursnif.pcap -A cmg
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
hosts
---SNIP---
host_tracker
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 1 0 1 0
total 1 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
any: 2
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 3
patterns: 417
pattern chars: 2566
num states: 1836
num match states: 371
memory scale: KB
total memory: 70.9639
pattern memory: 18.792
match list memory: 27.8125
transition memory: 23.9844
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/ursnif.pcap
07/21-19:27:47.161230 [**] [1:1000002:1] "Possible Ursnif C2 Activity" [**] [Priority: 0] {TCP} 10.10.10.104:49191 -> 192.42.116.41:80
00:1F:E2:10:8B:C9 -> 00:0C:29:C9:67:00 type:0x800 len:0x18C
10.10.10.104:49191 -> 192.42.116.41:80 TCP TTL:128 TOS:0x0 ID:20640 IpLen:20 DgmLen:382 DF
***AP*** Seq: 0x12E06BB Ack: 0xE061E225 Win: 0x4029 TcpLen: 20
snort.raw[342]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
47 45 54 20 2F 69 6D 61 67 65 73 2F 70 32 52 55 GET /ima ges/p2RU
52 68 5F 32 2F 42 6B 32 76 72 31 4F 59 52 46 31 Rh_2/Bk2 vr1OYRF1
57 47 75 35 6E 67 5F 32 46 73 66 73 2F 57 4F 57 WGu5ng_2 Fsfs/WOW
72 47 54 45 54 79 4B 2F 37 4D 7A 4D 5F 32 42 6E rGTETyK/ 7MzM_2Bn
47 5A 51 52 32 6A 73 67 50 2F 73 5F 32 42 70 53 GZQR2jsg P/s_2BpS
34 31 4B 37 41 67 2F 4F 75 4A 6A 51 66 41 61 63 41K7Ag/O uJjQfAac
32 64 2F 76 6D 46 5F 32 46 31 4B 42 50 72 4B 5F 2d/vmF_2 F1KBPrK_
32 2F 46 36 36 38 32 64 67 64 69 61 47 31 7A 75 2/F6682d gdiaG1zu
56 43 7A 37 47 68 64 2F 62 4C 37 36 57 66 35 71 VCz7Ghd/ bL76Wf5q
64 71 77 56 35 76 7A 52 2F 32 65 31 41 38 79 42 dqwV5vzR /2e1A8yB
49 64 6B 6D 49 5F 32 42 2F 6F 67 79 7A 4E 55 57 IdkmI_2B /ogyzNUW
33 47 72 2F 67 4B 42 5A 57 58 78 2E 67 69 66 20 3Gr/gKBZ WXx.gif
48 54 54 50 2F 31 2E 31 0D 0A 55 73 65 72 2D 41 HTTP/1.1 ..User-A
67 65 6E 74 3A 20 4D 6F 7A 69 6C 6C 61 2F 34 2E gent: Mo zilla/4.
30 20 28 63 6F 6D 70 61 74 69 62 6C 65 3B 20 4D 0 (compa tible; M
53 49 45 20 38 2E 30 3B 20 57 69 6E 64 6F 77 73 SIE 8.0; Windows
20 4E 54 20 36 2E 31 29 0D 0A 48 6F 73 74 3A 20 NT 6.1) ..Host:
62 6C 75 65 77 61 74 65 72 73 74 6F 6E 65 2E 72 bluewate rstone.r
75 0D 0A 43 6F 6E 6E 65 63 74 69 6F 6E 3A 20 4B u..Conne ction: K
65 65 70 2D 41 6C 69 76 65 0D 0A 43 61 63 68 65 eep-Aliv e..Cache
2D 43 6F 6E 74 72 6F 6C 3A 20 6E 6F 2D 63 61 63 -Control : no-cac
68 65 0D 0A 0D 0A he....
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-- [0] /home/htb-student/pcaps/ursnif.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 49
analyzed: 49
allow: 49
rx_bytes: 5925
--------------------------------------------------
codec
total: 49 (100.000%)
eth: 49 (100.000%)
ipv4: 49 (100.000%)
tcp: 16 ( 32.653%)
udp: 33 ( 67.347%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 49
processed_packets: 49
total_sessions: 15
service_cache_adds: 5
bytes_in_use: 760
items_in_use: 5
--------------------------------------------------
back_orifice
packets: 33
--------------------------------------------------
binder
new_flows: 12
service_changes: 2
inspects: 12
--------------------------------------------------
detection
analyzed: 49
raw_searches: 2
cooked_searches: 1
pkt_searches: 3
file_searches: 1
alerts: 1
total_alerts: 1
logged: 1
--------------------------------------------------
dns
packets: 19
requests: 12
responses: 7
--------------------------------------------------
file_id
total_files: 1
total_file_data: 304
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 2
scans: 9
reassembles: 9
inspections: 9
requests: 2
responses: 2
get_requests: 1
post_requests: 1
request_bodies: 1
max_concurrent_sessions: 2
total_bytes: 1603
--------------------------------------------------
port_scan
packets: 49
trackers: 7
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 2
total_inserts: 2
total_unique: 2
non_qualified_events: 1
qualified_events: 1
searched_bytes: 2192
--------------------------------------------------
stream
flows: 12
total_prunes: 7
idle_prunes_proto_timeout: 7
--------------------------------------------------
stream_tcp
sessions: 2
max: 2
created: 2
released: 2
instantiated: 2
setups: 2
restarts: 2
syn_trackers: 2
segs_queued: 4
segs_released: 4
segs_used: 4
rebuilt_packets: 9
rebuilt_bytes: 1627
syns: 2
syn_acks: 2
resets: 2
max_segs: 1
max_bytes: 981
--------------------------------------------------
stream_udp
sessions: 10
max: 10
created: 13
released: 13
timeouts: 3
total_bytes: 1964
--------------------------------------------------
wizard
tcp_scans: 2
tcp_hits: 2
udp_scans: 3
udp_misses: 3
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 11 9 0 2 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.039200
pkts/sec: 1250
Mbits/sec: 1
o")~ Snort exiting
Snort Rule Development Example 2: Detecting Cerber
alert udp $HOME_NET any -> $EXTERNAL_NET any (msg:"Possible Cerber Check-in"; dsize:9; content:"hi", depth 2, fast_pattern; pcre:"/^[af0-9]{7}$/R"; detection_filter:track by_src, count 1, seconds 60; sid:2816763; rev:4;)
-
The Snort rule above is designed to detect certain variations of Cerber malware.
-
Let’s break down the important parts of this rule to understand its workings.
-
$HOME_NET any -> $EXTERNAL_NET anysignifies the rule applies to anyUDPtraffic going from any port in the home network to any port on external networks. -
dsize:9;: This is a condition that restricts the rule to UDP datagrams that have a payload data size of exactly9bytes. -
content:"hi", depth 2, fast_pattern;: This checks the payload’s first2bytes for the stringhi. Thefast_patternmodifier makes the pattern matcher search for this pattern before any others in the rule, optimizing the rule’s performance. -
pcre:"/^[af0-9]{7}$/R";: This stands for Perl Compatible Regular Expressions. The rule is looking for seven hexadecimal characters (from the seta-fand0-9) starting at the beginning of the payload (after thehi), and this should be the complete payload (signified by the$end anchor). -
detection_filter:track by_src, count 1, seconds 60;: Thedetection_filterkeyword in Snort rule language is used to suppress alerts unless a certain threshold of matched events occurs within a specified time frame. In this rule, the filter is set to track by source IP (by_src), with a count of1and within a time frame of60seconds. This means that the rule will trigger an alert only if it matches more than one event (specifically, more than count events which is1here) from the same source IP address within60seconds. -
To test this Snort rule, add it in a file called
local.rules, then run Snort against thecerber.pcapfile.
sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R <path-to-rules-file> -r <path-to-pcap-file> -A cmg
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
output
---SNIP---
trace
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 0 1 1 0
total 0 1 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
any: 2
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 3
patterns: 417
pattern chars: 2511
num states: 1781
num match states: 371
memory scale: KB
total memory: 69.8359
pattern memory: 18.7383
match list memory: 27.3828
transition memory: 23.3398
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/cerber.pcap
07/22-02:17:56.486663 [**] [1:2816763:4] "Possible Cerber Check-in" [**] [Priority: 0] {UDP} 10.0.2.15:1046 -> 31.184.234.1:6892
08:00:27:A9:8C:97 -> 52:54:00:12:35:02 type:0x800 len:0x3C
10.0.2.15:1046 -> 31.184.234.1:6892 UDP TTL:128 TOS:0x0 ID:83 IpLen:20 DgmLen:37
Len: 9
snort.raw[9]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
68 69 30 30 37 32 38 39 35 hi007289 5
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
07/22-02:17:56.486795 [**] [1:2816763:4] "Possible Cerber Check-in" [**] [Priority: 0] {UDP} 10.0.2.15:1046 -> 31.184.234.2:6892
08:00:27:A9:8C:97 -> 52:54:00:12:35:02 type:0x800 len:0x3C
10.0.2.15:1046 -> 31.184.234.2:6892 UDP TTL:128 TOS:0x0 ID:84 IpLen:20 DgmLen:37
Len: 9
snort.raw[9]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
68 69 30 30 37 32 38 39 35 hi007289 5
---SNIP---
-- [0] /home/htb-student/pcaps/cerber.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 1035
analyzed: 1035
allow: 1035
rx_bytes: 65672
--------------------------------------------------
codec
total: 1035 (100.000%)
eth: 1035 (100.000%)
ipv4: 1035 (100.000%)
tcp: 9 ( 0.870%)
udp: 1026 ( 99.130%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 1035
processed_packets: 1035
total_sessions: 1026
service_cache_adds: 514
bytes_in_use: 78128
items_in_use: 514
--------------------------------------------------
back_orifice
packets: 514
--------------------------------------------------
binder
new_flows: 1026
service_changes: 1
inspects: 1026
--------------------------------------------------
detection
analyzed: 1035
raw_searches: 1026
pkt_searches: 1026
file_searches: 1
alerts: 511
total_alerts: 511
logged: 511
--------------------------------------------------
dns
packets: 2
requests: 1
responses: 1
--------------------------------------------------
file_id
total_files: 1
total_file_data: 164
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 1
scans: 5
reassembles: 5
inspections: 5
requests: 1
responses: 1
get_requests: 1
max_concurrent_sessions: 1
total_bytes: 462
--------------------------------------------------
pcre
pcre_rules: 2
pcre_native: 2
--------------------------------------------------
port_scan
packets: 1035
trackers: 516
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 512
total_inserts: 512
total_unique: 512
non_qualified_events: 1
qualified_events: 511
searched_bytes: 17146
--------------------------------------------------
stream
flows: 1026
--------------------------------------------------
stream_tcp
sessions: 1
max: 1
created: 1
released: 1
instantiated: 1
setups: 1
restarts: 1
syn_trackers: 1
segs_queued: 2
segs_released: 2
segs_used: 2
rebuilt_packets: 5
rebuilt_bytes: 474
syns: 1
syn_acks: 1
fins: 1
max_segs: 1
max_bytes: 435
--------------------------------------------------
stream_udp
sessions: 1025
max: 1025
created: 1025
released: 1025
total_bytes: 16982
--------------------------------------------------
wizard
tcp_scans: 1
tcp_hits: 1
udp_scans: 1024
udp_misses: 1024
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 2 1 0 1 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:01:11
seconds: 71.153373
pkts/sec: 15
o")~ Snort exiting

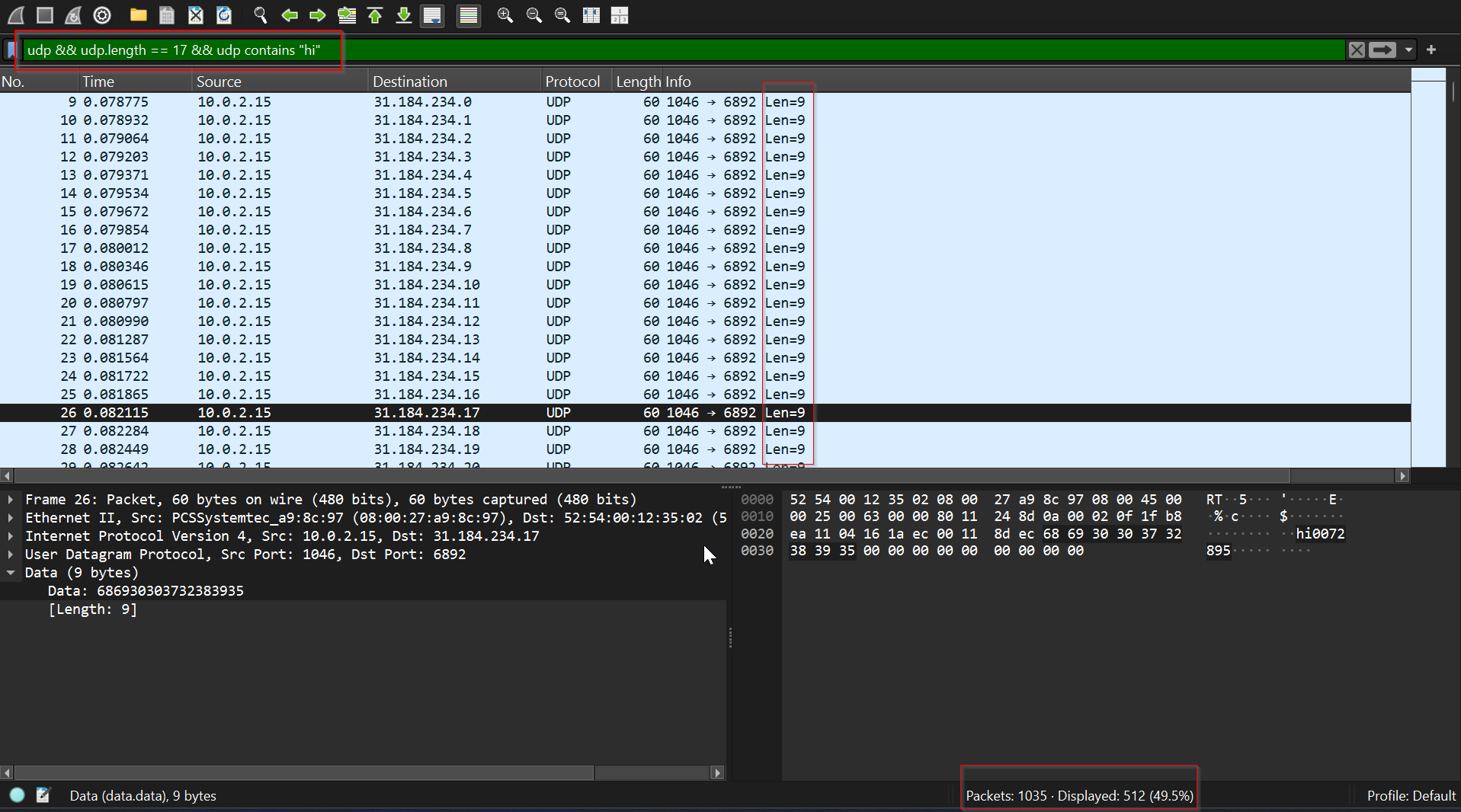

- When using Wireshark to apply this rule, the used filter:
udp && udp.length == 17 && udp contains "hi"
- You’ll notice that nearly half of the traffic is duplicates of each other:
- All have length 9.
- From same source to a destination sequential subnet.
- And contain the same message data—
hi0072895.
Snort Rule Development Example 3: Detecting Patchwork
alert http $HOME_NET any -> $EXTERNAL_NET any (msg:"OISF TROJAN Targeted AutoIt FileStealer/Downloader CnC Beacon"; flow:established,to_server; http_method; content:"POST"; http_uri; content:".php?profile="; http_client_body; content:"ddager=", depth 7; http_client_body; content:"&r1=", distance 0; http_header; content:!"Accept"; http_header; content:!"Referer|3a|"; sid:10000006; rev:1;)
The “Who and Where”
-
alert http $HOME_NET any -> $EXTERNAL_NET any—This tells the system to watch for HTTP traffic (web traffic) leaving your internal network ($HOME_NET) and heading out to the internet ($EXTERNAL_NET). -
flow:established,to_server—This ignores the initial connection handshake (the 3-way handshake) and only looks at the actual data being sent from the infected computer to the attacker’s Command & Control (C2) server.
Packet Content
- For this rule to trigger, the web request must meet all of the following criteria.
- If even one is missing, the rule stays silent:
1. The Method and Location
http_method; content:"POST";—The malware isn’t just “looking” at a page; it’s “posting” data (uploading information).http_uri; content:".php?profile=";—The destination URL on the attacker’s server must end in.php?profile=. This is a common way for malware to send “ID” info about the infected computer.
2. The Body (The “Cargo”)
- The rule looks inside the data being uploaded (
http_client_body) for specific markers:content:"ddager=", depth 7;—The very first 7 bytes of the data must beddager=. This is likely a hardcoded variable name the attacker used in their code.content:"&r1=", distance 0;—Immediately following the first variable, it looks for&r1=. This structure is typical for a web form sending multiple pieces of stolen data.
3. The “Missing” Headers (The Stealth Check)
-
This is the most clever part of the rule.
-
Legitimate web browsers almost always send certain “headers” to identify themselves.
-
This malware is poorly coded or trying to be minimal, so the rule looks for the absence of these headers:
content:!"Accept";—It triggers if theAcceptheader is missing.content:!"Referer|3a|";—It triggers if theRefererheader (which shows which site you came from) is missing.
-
Invest some time in scrutinizing both the
patchwork.pcapfile usingWiresharkand this rule to comprehend how it works. -

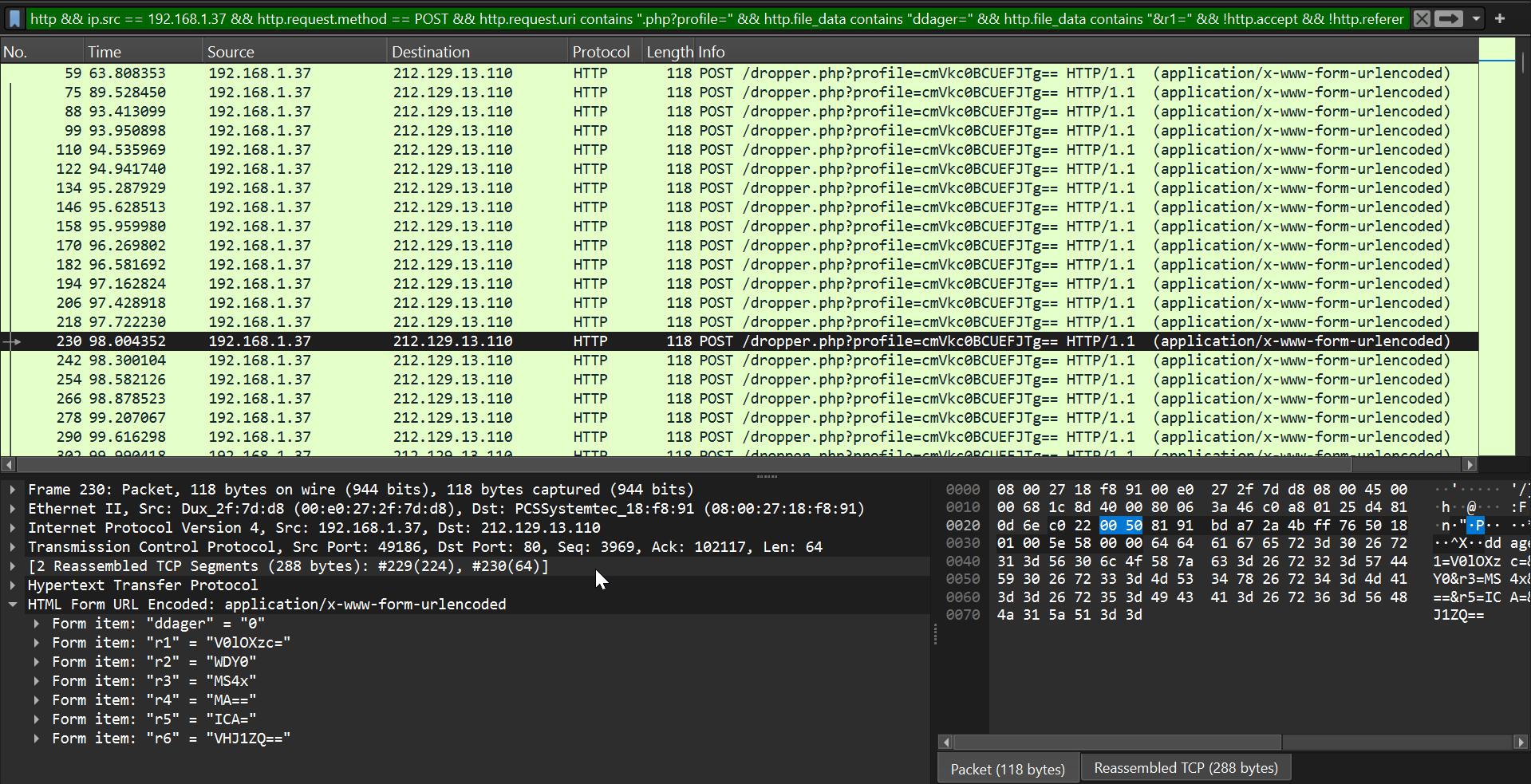

Wireshark Applied Filter:
http && ip.src == 192.168.1.37 && http.request.method == POST && http.request.uri contains ".php?profile=" && http.file_data contains "ddager=" && http.file_data contains "&r1=" && !http.accept && !http.referer
Snort Rule Development Example 4: Detecting Patchwork (SSL)
alert tcp $EXTERNAL_NET any -> $HOME_NET any (msg:"Patchwork SSL Cert Detected"; flow:established,from_server; content:"|55 04 03|"; content:"|08|toigetgf", distance 1, within 9; classtype:trojan-activity; sid:10000008; rev:1;)
-
flow:established,from_server;—Matches established traffic flows originating from the server. -
content:"|55 04 03|";—Searches for the hex sequence55 04 03, representing the ASN.1 tag for the “common name” field in an X.509 certificate (often the domain name). -
content:"|08|toigetgf", distance 1, within 9;: Locates the stringtoigetgfstarting 1 byte after the previous content match, within a 9-byte window. -

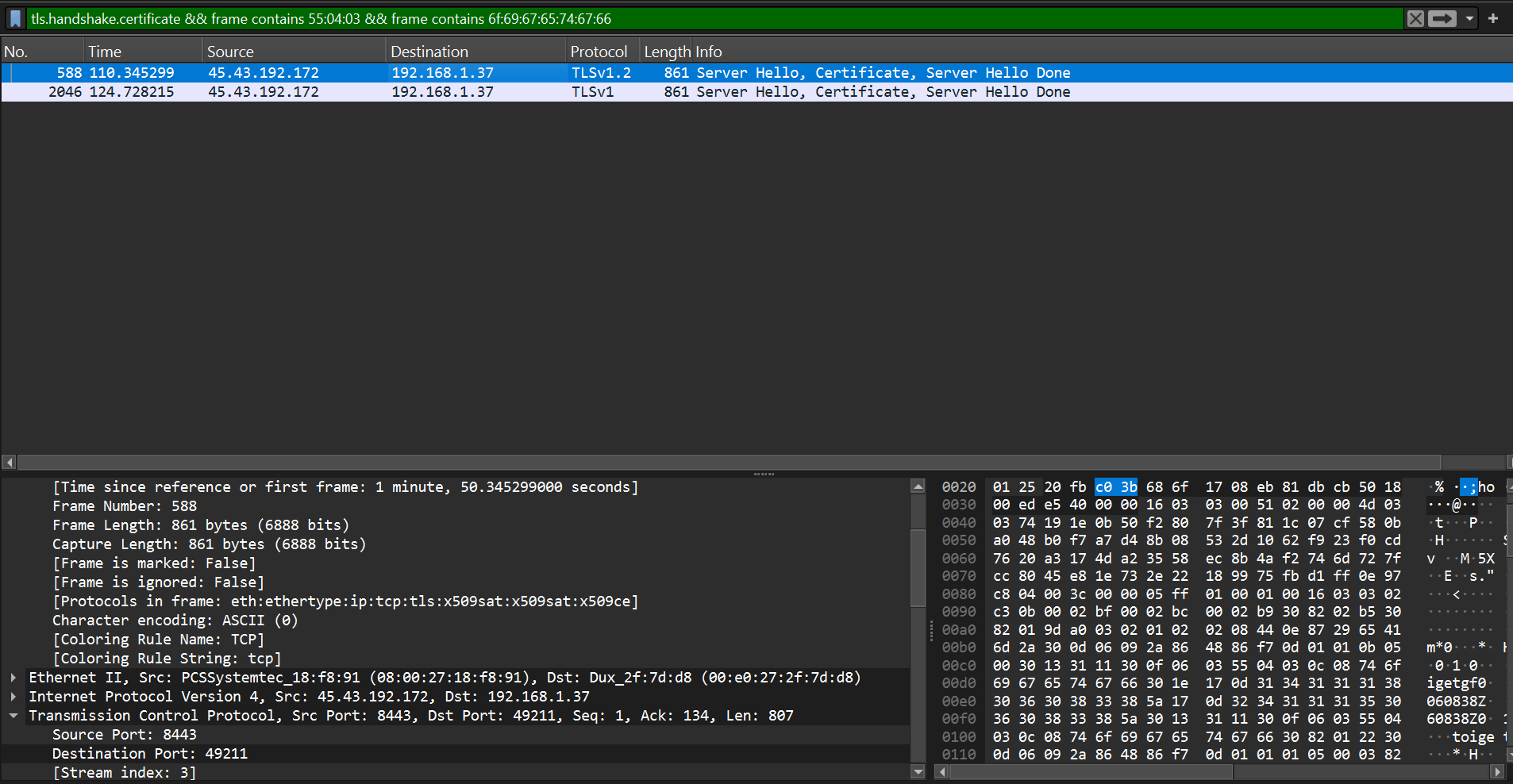

Wireshark filter used:
tls.handshake.certificate && frame contains 55:04:03 && frame contains 6f:69:67:65:74:67:66
